M-L211 Professional Access Control

▪ Standard for 5,000 Fingerprint / User

▪ Communication Interface with TCP/IP or RS485

▪ Full Access Control Functions

Overview
Specification
Download
Download

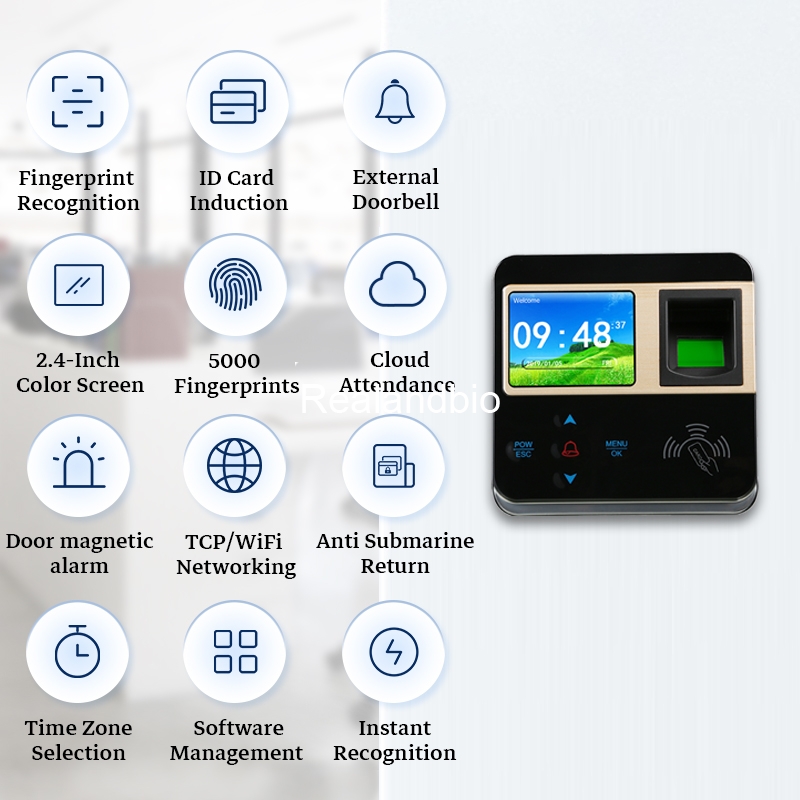

M-F211 is with innovative and compact design, access control and time attendance two in one solution.


It supports UDP function, more convenient for monitoring the access records.

Specifications:

Model

M-F211

Max User Capacity

5000

Fingerprint Capacity

5000

Transaction Capacity

100,000

Language

English / Spanish/Portuguese/ German (could   customize others)

Push Technology (UDP)

Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records.

Display

2.4inch TFT Screen

Fingerprint Sensor

500DPI (Optical)

Communication

TCP/IP, RS485, USB Memory Disk

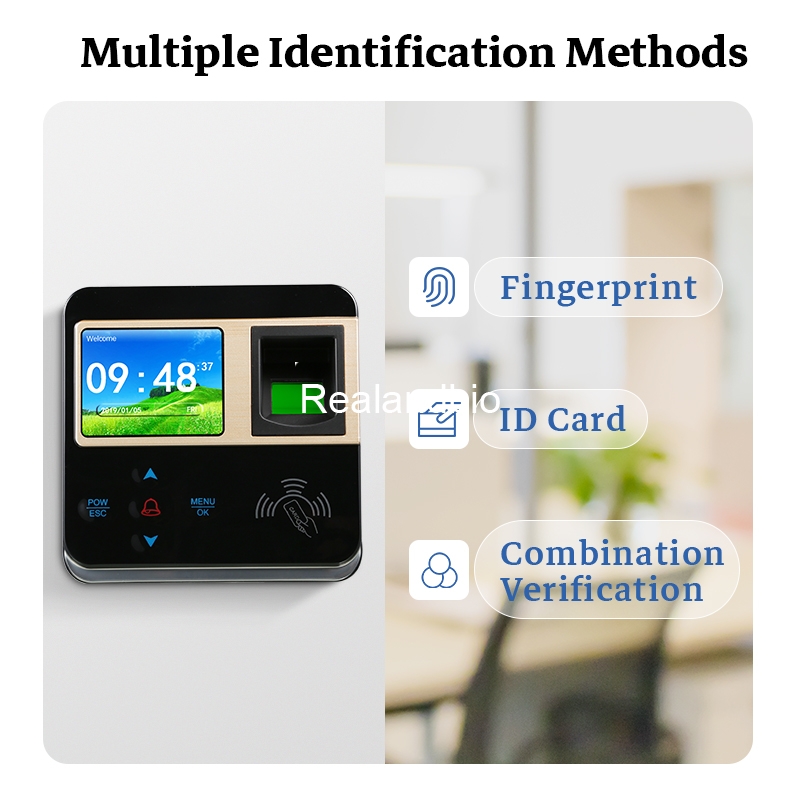

Authentication Method

Fingerprint/ RFID Card (125Khz)

Bell

Built-in Timing Bell (Scheduled-bell, can connect to external timing bell)

Access Control Interface

Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor

Professional access function

Open door by multilevel verification, anti-pass back

Power Supply

DC 12V/1A

Operating environment

Operating Temp: 0-45, Humidity:20%-80%

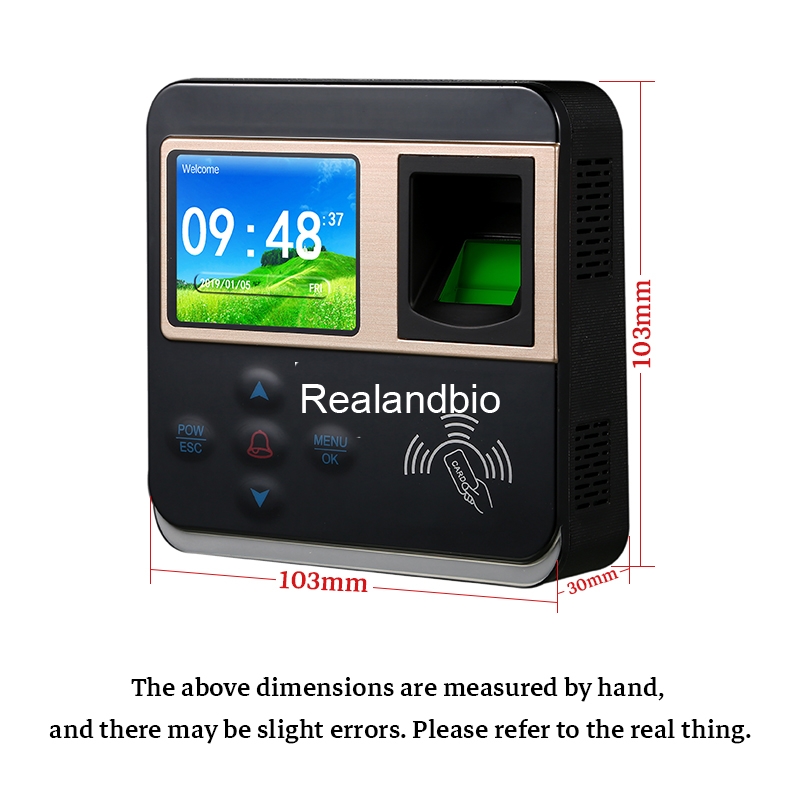

Terminal Size:

103(L)*103(W)*31(H)mm

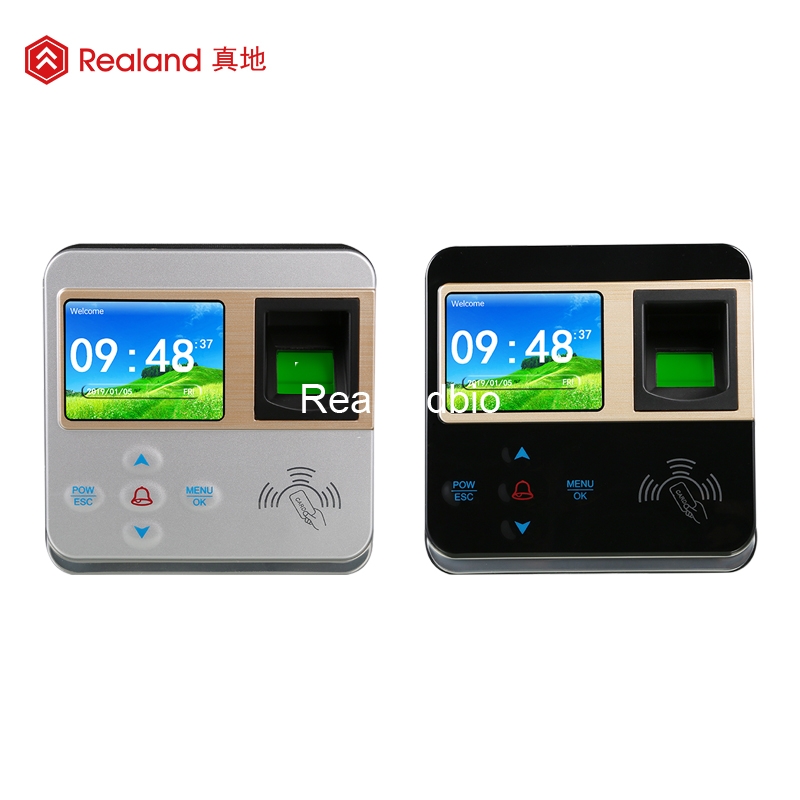

Color for   choose(Case)

Black, Silver
