M-L151 Professional Access Control

Optional for WIFI

Anti-passback, cannot shut down when being removed

Support Websocket API for Cloud Server development


Overview
Specification
Download
Download

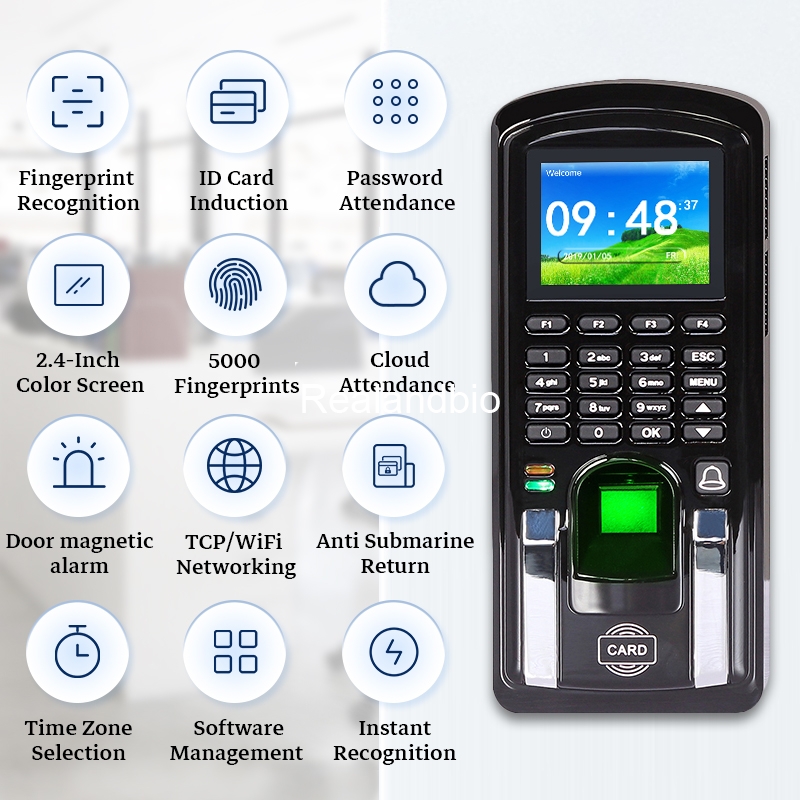

M-L151 is an affordable access control for office environments, it applies mass reliable import components and advanced fingerprint arithmetic in the world, and its design strictly follows domestic standard of security products.


It is suitable for office access control and enterprises’ internal access control, which has full time attendance function as well.

Specifications:

Model

M-L151

Max User Capacity

5,000

Fingerprint Capacity

5,000

Transaction Capacity

100,000

Language

English

Push Technology (UDP)

Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records.

Display

2.4 inch TFT Screen

Fingerprint Sensor

500DPI (Optical)

Hardware Platform

REALAND ZDC2960

Algorithm Version

REALAND RSFv5.1

Communication

TCP/IP, USB Memory Disk, optional for WIFI

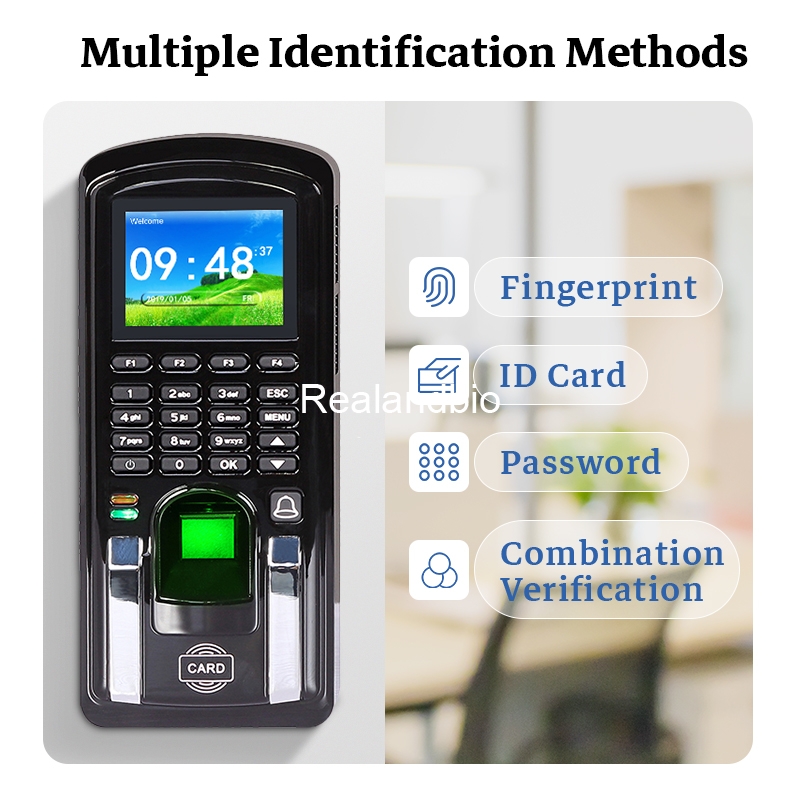

Authentication Method

Fingerprint/ RFID Card (125Khz)/ Password

Bell

Built-in Timing Bell (Scheduled-bell, can connect to external timing bell)

Access Control Interface

Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor

Professional access function

Open door by multilevel verification, anti-pass back

Optional functions

Add to 10,000 templates, MIFARE CARD   function

Power Supply

DC 12V/1A

Operating environment

Operating Temp: 0°c - 45°c,  Humidity:20%-80%

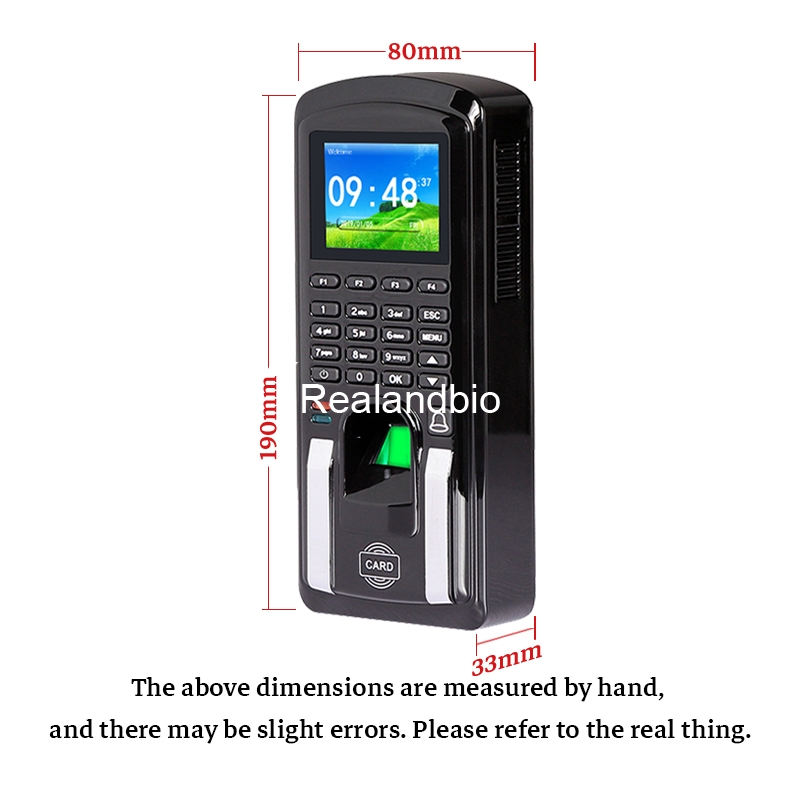

Terminal Size:

190(L)*80(W)*33(H)mm

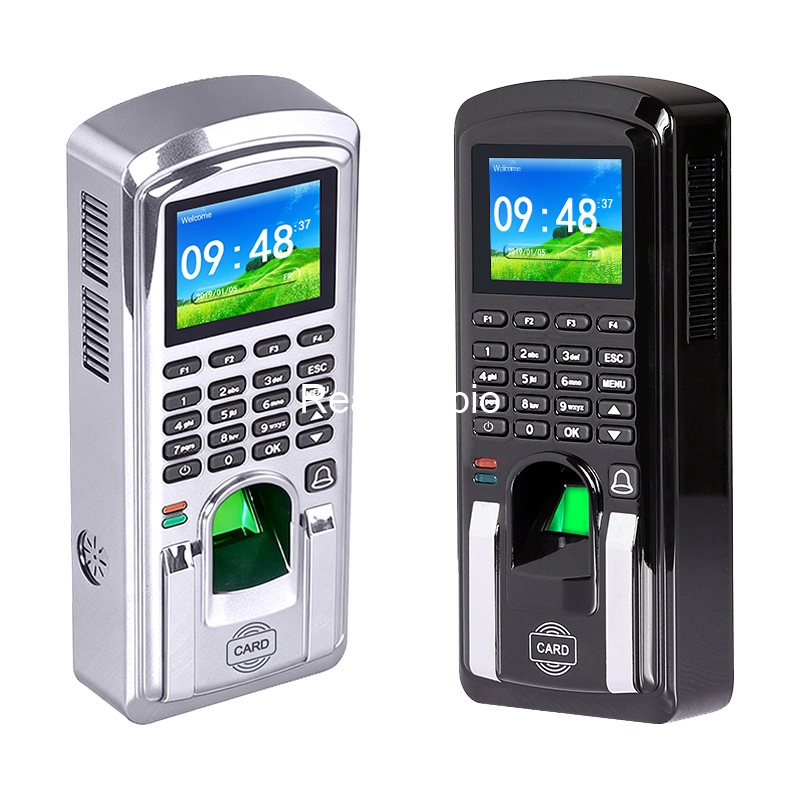

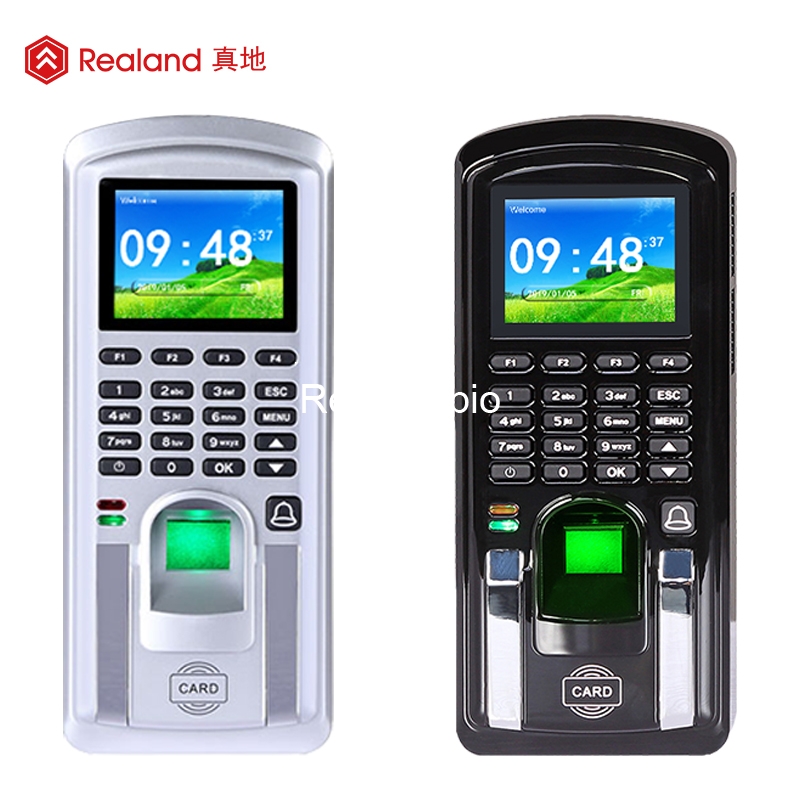

Color for   choose(Case)

Silver
